2006 Cutler-Hammer 150DHP-VR500, 15kV, 1200A Breaker
Sold
2006 Cutler-Hammer 150DHP-VR500, 15kV, 1200A Breaker
Location:1d Canada East (Ontario)
Available quantity:7
Description
- Cutler-Hammer, Type 150DHP-VR500, roll in replacement breakers for Westinghouse DHP switchgear.
- Used breakers replaced due to increase in available fault current at the station.
- 15kV, 95kV peak impulse, 1200A continuous, 18kA, 60Hz, 1.3 V range K factor, 5 cycle, 125 Vdc charging motor, close and trip.

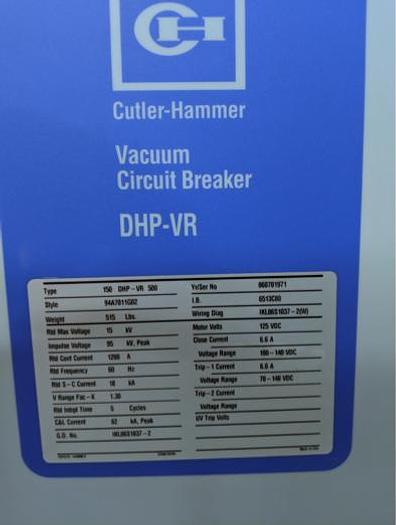

- Picture of sample nameplate attached.

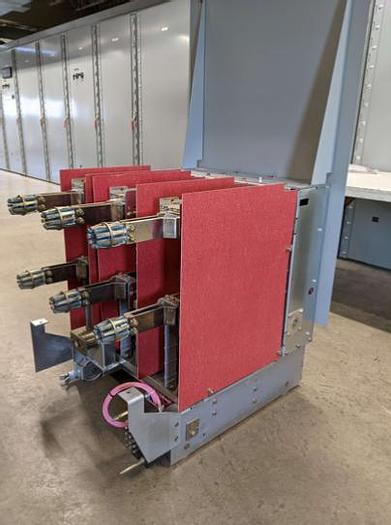

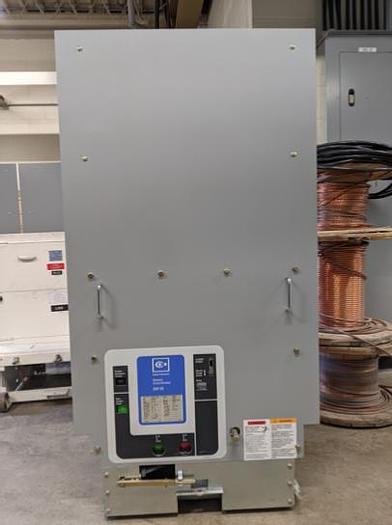

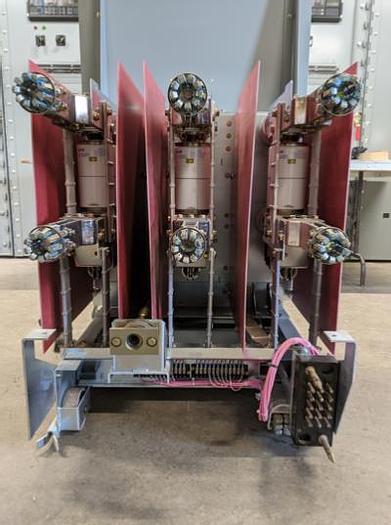

- Pictures of sample breaker.

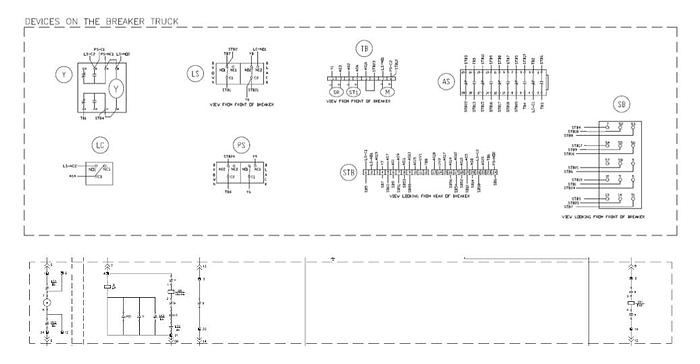

- Breaker control drawings attached.
Specifications
| Manufacturer | Cutler-Hammer |
| Model | 150DHP-VR500, 15kV, 1200A Breaker |
| Year | 2006 |
| Condition | Used |
| Stock Number | 003384 |
| Substation & Line Equipment Type | Circuit Breakers |
