1990 Carte 7500/10500 kVA Substation Transformer 34,500 Delta - 4160Y/2400
1990 Carte 7500/10500 kVA Substation Transformer 34,500 Delta - 4160Y/2400
Location:2c USA Northeast
Available quantity:1
Description

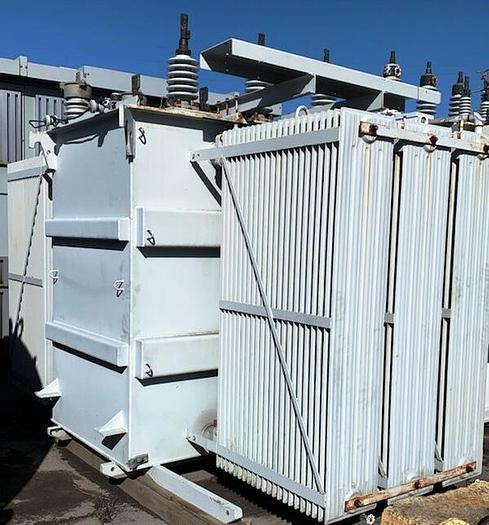

Carte 7500/10500 kVA Substation Transformer
7500/8400 kVA - OA
9375/10500 kVA - FA
Primary: 34,500 Delta with standard no load straddle taps -
Shipping Weight = 36,500 lbs.
Click REQUEST QUOTE anywhere you see it on our site to receive a quote, with Pricing and Specs, directly to your email!!
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Carte |
| Model | 7500/10500 kVA Substation Transformer 34,500 Delta - 4160Y/2400 |
| Year | 1990 |
| Condition | Used |
| Stock Number | 003493 |
| Transformer Mounting Style | Pad-Mount |
| kVA Rating | 7500/10500 |
| Primary Voltage(s) | 34500 Delta with standard no load straddle taps |
| Secondary Voltage(s) | 4160Y/2400 |
| BIL Rating | Primary: 200 kV, Secondary: 75 kV |
Additional Features
Qty - 1
Carte Substation Transformer
7500/8400 - OA
9375/10500 - FA
Primary: 34,500 Delta with standard no load straddle taps - BIL 200 kV
Secondary: 4160Y/2400 - BIL 75 kV
3 Phase
60 Hertz
Class OA FA
Rise 55 / 65 C
Configuration: Dyn1
Impedance = 5.99% at 75 C
Primary Bushings: TOP
Secondary Bushings: TOP
1,233 US Gallons
Mineral Oil
Built to CSA Standards C57.12.10

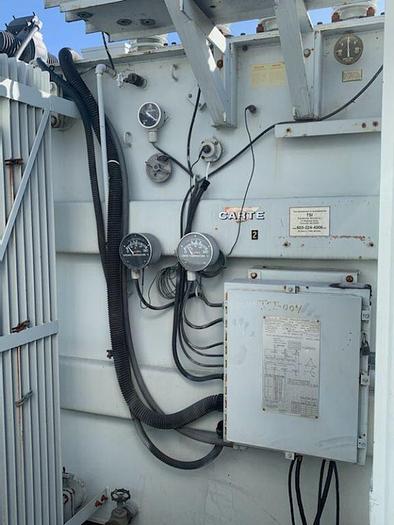

Standard Gauges & Valve Package Included
Fans not included.
Made in Canada.
Total Weight = 36,500 lbs.
Shipping Weight = 36,500 lbs.
Shipping Dimensions: 156" L, 104" W, 114" H
----------------------------------------------------------------------------
High Voltage Taps
1. 36,225 volts
2. 35,363 volts
3. 34,500 volts
4. 33,638 volts
5. 32,775 volts
